RF-GUV1201

2 Choose your connection method.

If you want to connect the audio using a headphone jack on

a TV, monitor, or receiver, complete the instructions in

“Option A: Headphone jack connection method.”

If you want to connect the audio using the PS3 AV cable,

complete the instructions in “Option B: AV cable connection

method” on the next page.

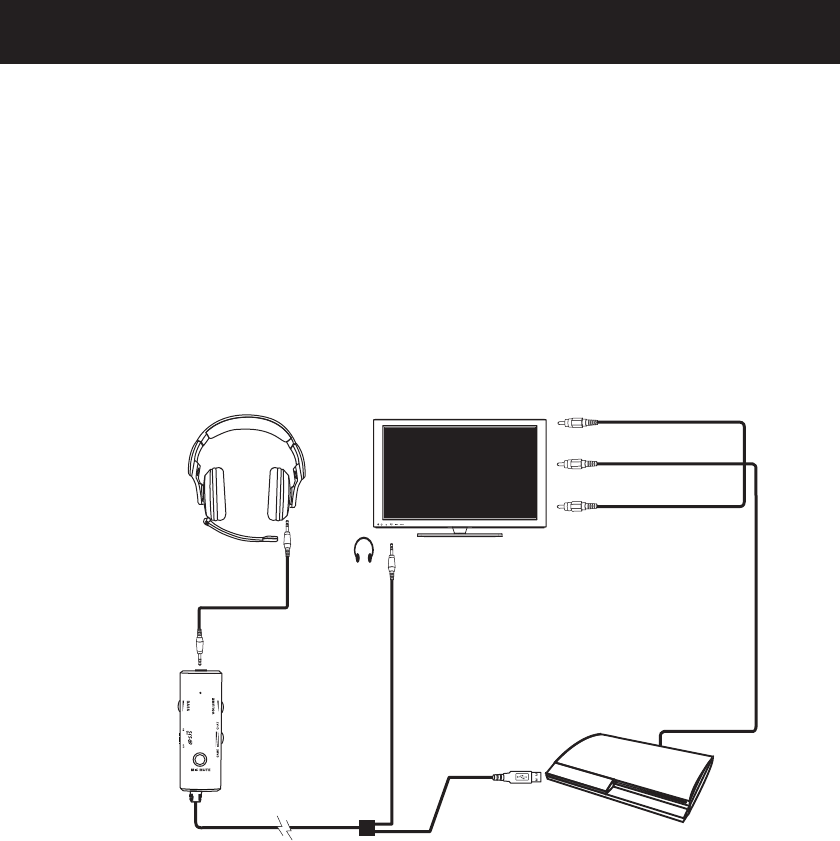

Option A: Headphone jack connection method

3 Make the connections shown in the following illustration.

Go to “Setting up the Chat function” on page 11.

SOURCE

Black 3.5mm

cable

In-line control

unit green

3.5mm cable

connector

In-line control unit

USB cable connector

PS3 AV cable

Yellow (video)

Red (right audio)

White (left audio)
